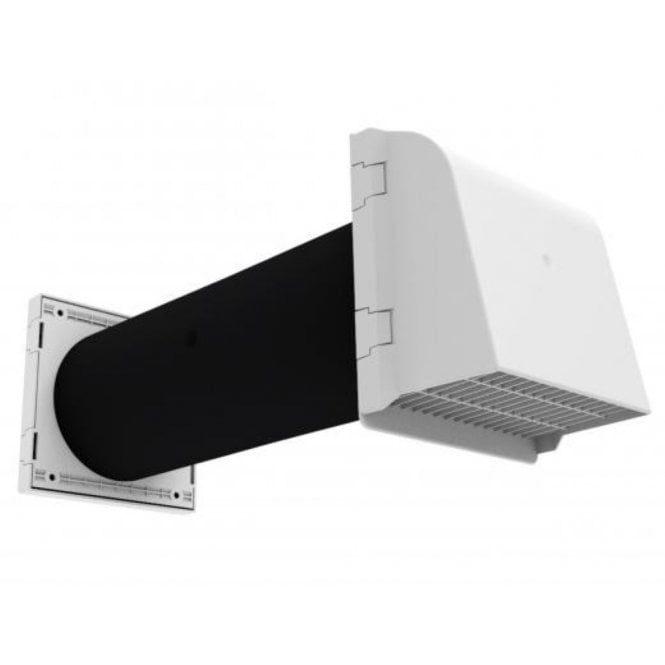

The Manthorpe 5" Core Drill Vent is designed for use when ventilating a room with a gas appliance, but can also be used for general through wall ventilation. The vent can easily be fitted in both refurbishment and new build situations with the use of a 5" (127mm) diameter core drill. The kit includes a cowl vent for exterior use, a louvre grille for inside, a 350mm length of pipe duct and an optional anti-draught baffle. This baffle reduces the airflow and also the feel of a draught through the vent. Without the use of the anti-draught baffle, the free area of the vent is 100cm², enough to supply an appliance with a rated input of 27kW or 92,000 Btu/h (in accordance with BS5440 Pt.2:2000). With the anti-draught baffle installed, the effective free area of the vent is reduced to 70cm² (BRE tested) providing enough ventilation for an appliance with an input rating of 21kW or 71,500 Btu/h. The external cowl minimises uncomfortable draughts, reduces noise and light from outside the property and acts as a barrier against wind driven rain while the louvre fits on the internal wall and, similarly helps to reduce draughts, noise and light penetration.

  • Ideally suited for ventilating rooms with gas appliances
  • 100cm² of airflow without draught baffle
  • 70cm² effective airflow with baffle
  • Fits through a 5" diameter core drill hole
  • Kit includes a hooded, weather proof external cowl cover
  • Discreet internal louvered grille with hidden fixing holes

£4.99 Standard Delivery, or FREE on most orders over £99* (some exclusions apply)

£9.99 Next day delivery is available for orders places before 12 noon. Any orders placed for next day delivery after this time, will take 2 working days to be delivered.

Working/delivery days are Monday to Friday, deliveries will not normally be made Saturday or Sunday.

We offer a 30-day returns policy on on the majority of our items*, as long as the item is unused, undamaged and unopened**. We only ask that the postage is covered by yourself.


* Please see our delivery page for further details on specific exceptions.

** Some products that are made to order or personalised cannot be returned.

***Exclusions apply for items shipped directly from our suppliers, and some big & bulky items may incur an additional charge. Please see our delivery page for full details.

Be the first to review 5" Core Drill Ventilator. Write a review

Manthorpe 5" Core Drill Ventilator

  • 17,05 € inc. VAT
  • (Delivery from 5,57 € inc. VAT )
Item in Stock   |   Usually dispatched within 24 hours
