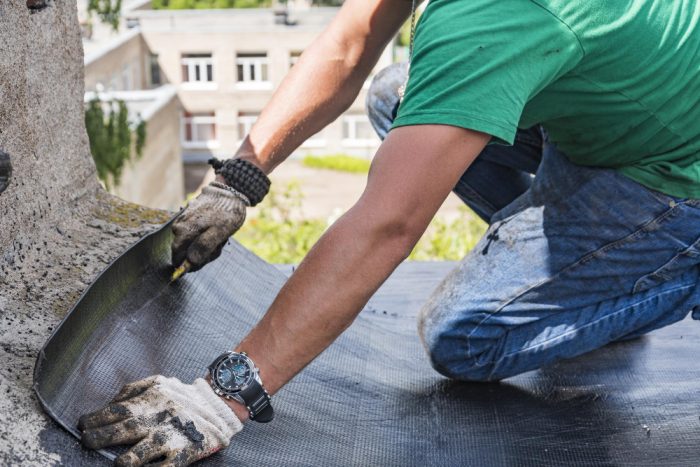

Structural Waterproofing: How to Install DPMs and Weep Vents Correctly

Whether you are working on a new site build, tackling an extension, or carrying out a major property renovation, keeping moisture out of the building envelope is paramount. Water ingress can lead to structural damage, compromised insulation, timber decay, and unpleasant damp issues inside the home.

That’s where effective structural waterproofing comes in. Two of the most essential elements in any cavity wall or floor slab defence system are Damp Proof Membranes (DPMs) and weep vents.

Combined with a solid Damp Proof Course (DPC), these products keep water outside where it belongs, while safely draining trapped moisture away. In this guide, our experts break down the essential steps for a successful damp-proof membrane installation and explain how to install weep vents to maintain healthy cavity wall ventilation.

What is a DPM and Why Do You Need One?

A Damp Proof Membrane (DPM) is a heavy-duty, impermeable sheet, typically made from high-density polyethene, installed beneath a concrete floor slab or foundation. Its job is to prevent ground moisture from rising through capillary action into the floor structure.

To provide complete protection, your DPM must seamlessly link with your Damp Proof Course (DPC). The DPC is a horizontal barrier laid within the brickwork or blockwork walls, positioned at least 150mm above the finished ground level. Linking the DPM and DPC creates a continuous, unbroken seal against water ingress.

Step-by-Step: Damp Proof Membrane Installation

Proper surface preparation and careful sealing are critical when laying a DPM. A single puncture or unsealed joint can compromise the entire waterproofing layer.

1. Prepare the Sub-Base: Critical step to prevent membrane punctures

Ensure the hardcore sub-base is well-compacted and covered with a generous sand blinding layer. Remove any sharp stones, aggregate, or debris that could puncture the plastic sheet under the weight of the concrete pour.

2. Lay the Membrane: Allow plenty of excess material at wall boundaries

Unroll your DPM smoothly over the blinded surface, ensuring it sits flat without excessive wrinkles. Allow the membrane to turn up at the wall perimeters so it can easily overlap with your wall DPC later.

3. Seal All Joints & Overlaps: Minimum 150mm overlap required

Where sheets join, overlap them by a minimum of 150mm. Bond the sheets together using high-tack double-sided jointing tape, then seal the visible top edge with single-sided lap tape to create a complete watertight seal.

4. Link DPM to the DPC: Establishes continuous structural protection

Fold the perimeter edges of the DPM up the wall and overlap them with the inner leaf Damp Proof Course (DPC). Joint them securely using specialised sealing tape to form a continuous barrier around the perimeter.

5. Inspect & Pour: Check closely before covering

Carefully inspect the entire membrane for tears, punctures, or unsealed joints. Patch any damaged areas with extra membrane and double-sided tape before pouring your concrete slab.

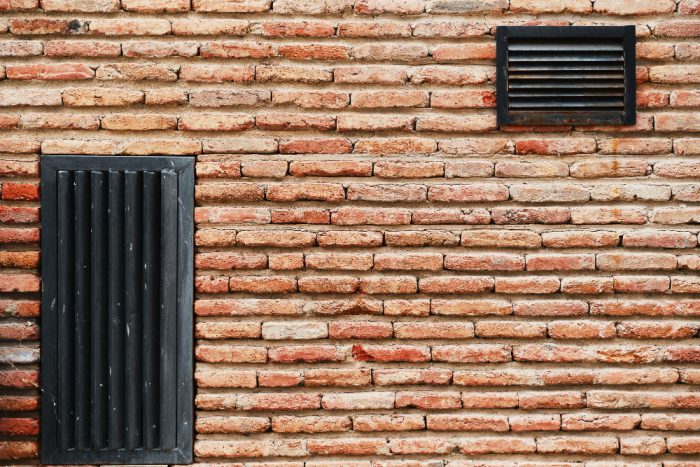

Understanding Weep Vents & Cavity Wall Ventilation

While a DPM protects floor slabs, cavity walls need their own moisture-management strategy. In a standard cavity wall setup, driving rain can penetrate the outer brick skin. Any water that enters runs down the inside face of the outer brickwork until it hits a cavity tray (or DPC) positioned above lintels, openings, or ground level.

Without an exit route, this trapped water will build up, bridging the cavity and causing internal damp. Weep vents (or weep holes) solve this problem by:

• Draining Standing Water: Providing a path for trapped moisture to escape through the external wall.
• Ensuring Cavity Wall Ventilation: Allowing airflow into the cavity to help dry out residual dampness while preventing pest ingress via built-in grilles.

How to Install Weep Vents Correctly

Installing weep vents is straightforward, but correct spacing and positioning are vital to ensure they comply with UK Building Regulations (such as BS 5250).

Key Placement Rules:

1. Above DPCs & Cavity Trays: Install weep vents directly on top of the horizontal DPC or cavity tray layer.
2. Above Openings: Place weep vents above window heads, doors, and lintels where a cavity tray is installed.
3. Ground Level: Position weep vents in the course immediately above the external ground-level DPC.

Installation Walkthrough:

1. Space Them Accurately: Position weep vents at centres no greater than 900mm apart along horizontal runs. Ensure at least two weep vents are above any window or door opening, regardless of width.
2. Insert into Vertical Joints: Place the weep vent directly into the perpendicular mortar joint (perpend) between two facing bricks.
3. Bed in Mortar: Apply mortar to the top and bottom of the vent unit so it fits snugly between the brick courses. Ensure the front face sits flush with the external brickwork.
4. Keep Grilles Clear: Avoid clogging the front vent opening or internal drainage channels with wet mortar during pointing.

Essential Materials Checklist

To complete your structural waterproofing job to a professional standard, make sure you have the right supplies on hand before you start:

Material / Tool	Purpose	Recommended Feature
Damp Proof Membrane (DPM)	Base slab ground moisture protection.	1200-gauge (300 micron) heavy-duty polyethene.
Damp Proof Course (DPC)	Horizontal masonry moisture barrier.	Flexible embossed polyethene sheet.
Weep Vents / Plastic Weeps	Drainage & cavity airflow.	Built-in baffle grid to block insect entry.
DPM Jointing Tape	Watertight sheet overlaps.	Double-sided butyl tape & single-sided lap tape.
Cavity Trays / Flashing	Directs water outward above openings.	Pre-formed units or heavy-duty tray membrane.
